Fax Integration for Network Professionals: A Practical Guide

Table of Contents

Introduction: Why Network Admins Need Fax Knowledge

You’ve mastered routers, switches, and firewalls. You understand VLANs (Virtual Local Area Networks), QoS (Quality of Service), and network security. But when someone mentions “fax machine,” you feel lost. If you work with healthcare, legal, or government clients, this knowledge gap isn’t just inconvenient – it’s limiting your effectiveness and client relationships.

This guide bridges that gap, taking you from networking fundamentals to fax competency.

The Technical Reality of Fax

Fax operates fundamentally differently from modern data networks. While your network expertise centers on packet-switched communications optimized for data bursts and retransmission, fax requires circuit-switched behavior with real-time, sequential transmission that cannot tolerate packet loss or jitter.

Fax machines communicate using audio tones transmitted over analog phone lines. These tones carry specific timing and frequency requirements that digital compression destroys. A standard fax transmission operates at 14.4 kbps with strict timing requirements – any deviation in timing or frequency corruption results in transmission failure.

This explains why you can’t simply “plug a fax into the network” the way you would any other device. The protocols and requirements are entirely different.

Three Fax Deployment Approaches

1. Traditional POTS Lines

Plain Old Telephone (Photo by Tasha Kostyuk on Unsplash)

Plain Old Telephone Service remains the most reliable fax method. A dedicated copper line from the phone company directly to your fax machine eliminates digital conversion issues entirely.

However, POTS availability is rapidly declining (related Hacker News discussion). Most carriers no longer install new copper infrastructure, and existing lines carry premium pricing. In urban areas, expect costs of $80-150 monthly per line. Rural areas may still have reasonable POTS availability, but urban deployments increasingly rely on alternative approaches.

Use POTS when: You have existing copper lines, the client location is rural, or you need absolute reliability for compliance-sensitive transmissions.

Alternative: 4G POTS replacement devices are available when traditional copper isn’t feasible but you need analog line behavior. These devices provide RJ11 (standard telephone jack) connectivity through cellular networks, though they may have limitations with high-speed fax protocols like SuperG3 (Super Group 3 – a high-speed fax standard that can transmit up to 33.6 kbps).

2. VoIP Integration

Most modern fax deployments integrate with existing VoIP (Voice over Internet Protocol) infrastructure using one of two protocols: T.38 and G.711 passthrough.

T.38 (Recommended)

T.38 is a dedicated fax transmission protocol specifically designed to address fax transmission over IP networks. Instead of trying to squeeze analog fax signals through voice codecs, T.38 recognizes fax transmissions and switches to a specialized packet format designed for fax data.

For T.38 to work reliably, every component in the transmission path must support it. This includes your ATA (Analog Telephone Adapter) device, PBX (Private Branch Exchange) system, SIP (Session Initiation Protocol) trunk provider, and the receiving end’s infrastructure. If any component falls back to voice codecs, transmission reliability drops significantly.

Provider Reality Check: Many SIP trunk providers claim T.38 support but only implement it on their connection to you, converting to G.711 internally or during carrier handoffs. Only a few providers maintain T.38 end-to-end: T38Fax.com and TelNet Worldwide are confirmed to support true end-to-end T.38 transmission. When evaluating providers, specifically ask about their internal T.38 handling and carrier interconnect protocols.

G.711 Passthrough

When T.38 isn’t available end-to-end, G.711 provides the next-best option. G.711 is an uncompressed audio codec that uses 64 kbps bandwidth, preserving the analog characteristics fax machines require. However, G.711 can cause intermittent issues that are difficult to diagnose.

Critical: Never use G.729 or other compressed codecs for fax. G.729 is a compressed audio codec that uses only 8 kbps bandwidth by removing audio data – this compression removes data that fax machines require for proper tone recognition, making reliable transmission impossible.

Configure G.711 with these requirements:

Disable echo cancellation
Set fixed jitter buffers at 40-60ms (adaptive buffers cause timing issues)
Reduce transmission speed to 9,600 bps or lower
Disable error correction mode (ECM) on the fax machine
Use transcoding-free G.711 connection when possible

ATA Configuration

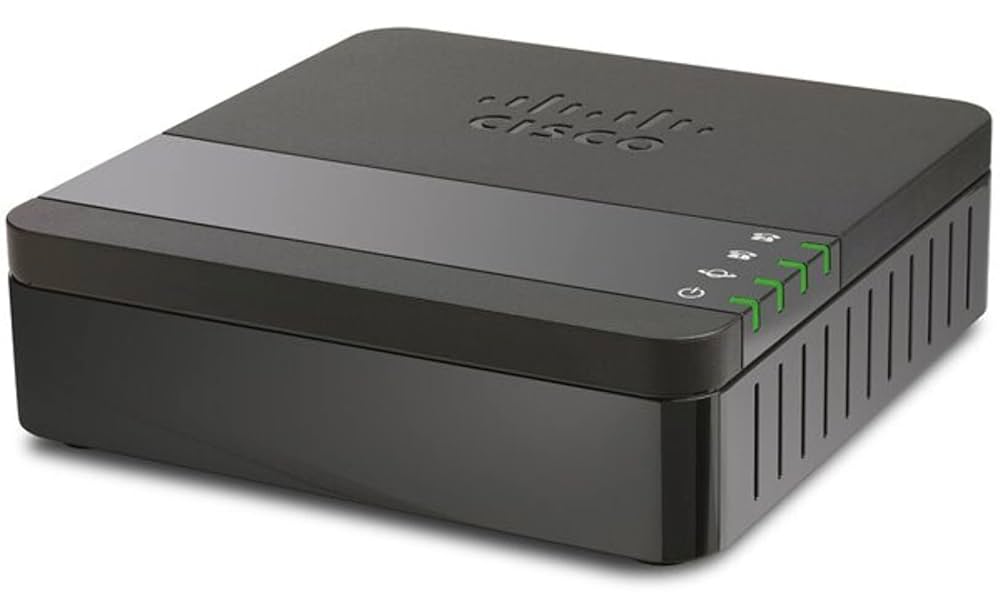

Cisco Analog Telephone Adapter (ATA)

Analog Telephone Adapters bridge the gap between analog fax machines and IP networks. The Cisco SPA 112 was popular but is discontinued. Current recommended options include:

Grandstream HT801/HT802: Cost-effective, reliable for low-volume applications
AudioCodes MP-11x series: Enterprise-grade with advanced configuration options
Adtran Total Access series: Multi-port solutions for higher capacity needs

For specific device recommendations and configuration guides, T38Fax.com maintains a comprehensive list of tested ATAs with detailed setup instructions.

Key ATA settings for fax:

Codec priority: G.711 only (disable G.729 completely)
Packet size: 20ms (milliseconds)
Jitter buffer: Fixed at 40-60ms (never adaptive)
DTMF (Dual-Tone Multi-Frequency) method: RFC 2833 (standardized method for transmitting touch-tone signals over IP)
Echo cancellation: Disabled
Error Correction Mode (ECM): Disabled on fax machine

3. Cloud Fax Services

Clouds over a business district (Photo by David Kristianto on Unsplash)

Cloud fax eliminates on-premises hardware complexity by providing fax capability through email integration. Users send PDFs via email to a service that converts and transmits them as traditional fax.

Leading providers include:

SRFax: HIPAA (Health Insurance Portability and Accountability Act) compliant, API (Application Programming Interface) integration, reasonable pricing
eFax: Consumer-focused but offers business plans
RightFax Cloud: Enterprise-grade with advanced routing

Cloud services cost $10-50 monthly depending on volume and features. For most clients, this proves more cost-effective than maintaining dedicated fax infrastructure.

Important Configuration Warnings

Error Correction Mode (ECM) Risks

While ECM can improve transmission quality, disabling it when using G.711 creates a serious risk: random lines may be lost from received faxes without any indication of transmission failure. In financial or legal environments, this can have severe consequences. One financial services company experienced significant losses when buy/sell instruction lines were dropped from trading orders, requiring client compensation payments.

When using VoIP for fax transmission, carefully weigh the reliability benefits of disabling ECM against the risk of undetected data loss. For critical documents, consider transmission verification procedures or alternative delivery methods.

Codec and Network Requirements

Fax transmission is extremely sensitive to network conditions, but not in ways network administrators typically expect:

Latency: Less important than commonly assumed
Jitter: Extremely problematic – requires fixed jitter buffers and QoS prioritization
Packet Loss: Any packet loss can cause transmission failure
Compression: Fatal to fax transmission – G.729 and similar codecs will not work

These requirements apply not just to your local network, but to the entire transmission path including carrier interconnects you cannot control.

Immediate Problem Solving

“Day One Fax Call” Checklist

When you walk into a client site with a non-working fax, follow this structured 20-minute approach:

Before you touch anything (5 minutes):

Ask: “When did it last work?” and “What changed?”
Locate the existing phone line connection
Find the fax settings menu on the device (usually under Setup > Fax Setup)
Write down current fax number and any error codes displayed

Basic connectivity test (3 minutes):

Unplug fax line from printer, plug in analog handset
Listen for dial tone quality (clean vs. static/buzzing)
Try dialing out to verify line works
If no dial tone: call phone company, don’t proceed

Printer-specific checks (10 minutes):

HP fax setup wizard: run auto-detect for line type
Set to “PBX” if behind phone system, “PSTN” if direct line
Disable “detect dial tone” if line sounds unusual but works
Test with built-in fax test by sending to Faxbeep test number

If test fails (decision point):

Line quality issue: reduce speed to 9600 bps, disable ECM
Still failing: document findings, escalate to phone company
Working but slow: acceptable, document speed setting used

Diagnostic Methodology

When troubleshooting fax issues, follow this systematic approach:

Verify Physical Connectivity
- Test dial tone on the line
- Confirm analog handset works from the same connection
- Check cable integrity and connections
Test Basic Fax Function
- Send a test fax to a known working number
- Receive a test fax from a known working source
- Use fax test services (many carriers provide test numbers)
Analyze Failure Patterns
- Does it fail on all transmissions or specific destinations?
- Are failures immediate or mid-transmission?
- Do incoming faxes work while outgoing fail (or vice versa)?
Check VoIP-Specific Issues (if applicable)
- Verify codec configuration (G.711 only, never G.729)
- Test during different network load conditions
- Check for T.38 support end-to-end
- Confirm fixed jitter buffer settings

Common Failure Modes

“No Dial Tone” or “Line Busy” Usually indicates physical or PBX configuration issues. Verify line assignment, check for dial plan conflicts in VoIP systems, and confirm analog port functionality.

“Transmission Starts Then Fails” Typically codec or timing related. Switch to G.711, reduce transmission speed, and verify jitter buffer settings. In T.38 environments, check for fallback to voice codecs.

“Poor Quality” or “Partial Transmission” Indicates line quality issues. Test during different times to identify network congestion patterns. Consider reducing transmission speed or switching from T.38 to G.711. Note that SuperG3 high-speed fax modes often fail over VoIP – configure fax machines to use standard Group 3 speeds (14.4 kbps or lower) for better reliability.

“Works Sometimes, Fails Others” Usually points to jitter or packet loss. Implement QoS for VoIP traffic, check for network congestion, and verify consistent codec negotiation. This pattern is common when adaptive jitter buffers are enabled – switch to fixed buffers immediately.

Understanding Organizational Responsibilities

In many organizations, fax support straddles the boundary between network and telecommunications teams. Understanding these boundaries helps with escalation and resource planning:

Network Team Typically Handles:

ATA device configuration and network connectivity
QoS implementation for VoIP traffic
Network troubleshooting (jitter, packet loss, latency)
Integration with existing IP infrastructure

Telecom/Voice Team Typically Handles:

PBX configuration and analog port assignment
SIP trunk provider relationships and codec negotiation
Dial plan configuration and number routing
Carrier troubleshooting and circuit testing

Shared Responsibilities:

End-to-end testing and validation
User training and support procedures
Vendor coordination for complex issues

When working in an MSP (Managed Service Provider) environment, you may need to handle all these areas, but understanding the traditional divisions helps when working with larger client organizations or coordinating with specialized vendors.

Client Consultation Strategy

Needs Assessment

Before recommending solutions, understand the client’s actual requirements:

Volume and Patterns

How many faxes per day/month?
Peak usage times?
Typical document length and complexity?

Compliance Requirements

HIPAA (healthcare)?
Legal privilege requirements?
Government security clearances?
Audit trail needs?

Existing Infrastructure

Current phone system type?
Network capacity and quality?
User technical comfort level?

Budget Constraints

Monthly operational costs?
Capital expenditure limits?
IT management resources?

Recommendation Framework

Low Volume (< 50 faxes/month) Recommend cloud fax services. Cost-effective, no hardware maintenance, email integration improves workflow.

Medium Volume (50-500 faxes/month) Consider hybrid approach: cloud for outbound, ATA with MFP (Multi-Function Printer) for inbound. Provides cost control while maintaining familiar user experience.

High Volume (> 500 faxes/month) Evaluate dedicated fax servers or enterprise cloud solutions. Integration with document management systems becomes worthwhile.

High Compliance Requirements Prioritize solutions with built-in audit trails, encryption, and retention policies. May justify premium pricing for specialized compliance features.

For applications with HIPAA compliance requirements, check out our HIPAA Compliance for Fax Systems: A Network Professional’s Guide

Modernization Path

Position yourself as the consultant who helps clients transition from legacy fax infrastructure to modern alternatives. This consultative approach adds value beyond basic troubleshooting.

Migration Strategy

Phase 1: Assessment and Planning Document current fax usage patterns, identify compliance requirements, and evaluate network readiness for VoIP fax.

Phase 2: Hybrid Implementation Implement cloud services for new workflows while maintaining existing fax machines for transition period. This allows user adaptation without disrupting established processes.

Phase 3: Full Transition Replace remaining analog fax infrastructure with integrated solutions. Train users on new workflows and establish ongoing support procedures.

ROI Presentation

Quantify the business case for modernization using ROI (Return on Investment) calculations:

Cost Reduction

Eliminate POTS line charges ($80-150/month per line)
Reduce paper and toner consumption
Decrease troubleshooting time and support calls

Efficiency Gains

Faster transmission (seconds vs. minutes)
Email integration eliminates manual processes
Automatic retry and delivery confirmation

Risk Mitigation

Improved audit trails for compliance
Reduced dependency on aging infrastructure
Better disaster recovery capabilities

Conclusion

Fax integration combines legacy telephony knowledge with modern networking skills. Understanding the technical constraints and available solutions positions you to solve immediate problems while guiding clients toward sustainable modernization.

The key is recognizing that fax isn’t going away in compliance-heavy industries or in countries where faxing is entrenched, but how organizations implement fax capability can be dramatically improved. Your networking expertise, combined with focused fax knowledge, creates opportunities to add significant value for clients stuck with outdated communication methods.

Start with the diagnostic methodology for immediate problem-solving, then develop the consultative skills to position infrastructure improvements. This combination of tactical problem-solving and strategic planning will distinguish you from technicians who only address immediate issues.

This guide was inspired by a thread from the r/networking community: Where can I learn about faxing?

Featured image photo by Albert Stoynov on Unsplash
